Test Results



Art.–Nr. SKY-UWA-09

Skywatcher Ultra Wide Angle 9mm



Sharpness:

Very good sharpness within 60° apparent field of view, just a little bit worse close to the edge.

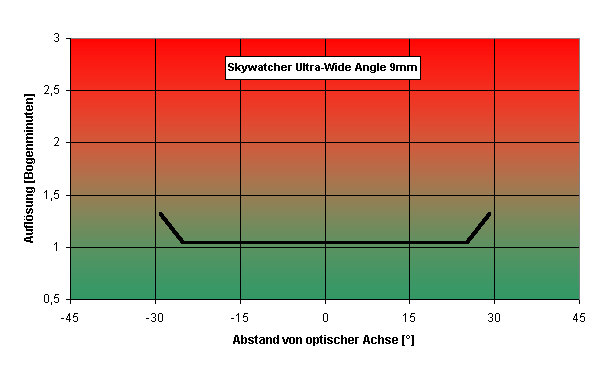

x-axis: distance from optical axis in °, y-axis: resolution in arc minutes



Apparent Field of View:

The apparent field of view is approx. 66°.



Contrast:

Very good contrast.



Aberration:

Slight cushion distortion.



Eye Relief:

Comfortable.



Mechanical Quality:

Good quality with foldable rubber eye cup.



Summary:

Large apparent field of view for little money combined with good optical performance. The eyepiece is recommended for use with F/5 or slower optics.
