Test Results

Art.–Nr. SOL-ED-07.5

Soligor ED 7.5mm

Sharpness:

Not perfect directly at the center as well as close to the edges, but still very good.

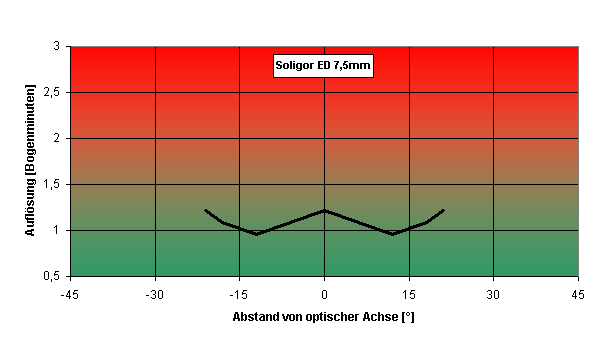

x-axis: distance from optical axis in °, y-axis: resolution in arc minutes

Apparent Field of View:

The apparent field of view is approx. 48°.

Contrast:

Very good.

Aberration:

Nothing noticeable.

Eye Relief:

Comfortable.

Mechanical Quality:

A very good manufactured eyepiece of high quality.

Summary:

Recommendable from the optical point of view as well as from the mechanical quality.
