Test Results

Art.–Nr. TS-SP-06

TS Super Ploessl 6mm

Sharpness:

Good within about 30° field of view. Things are getting worse to the edges.

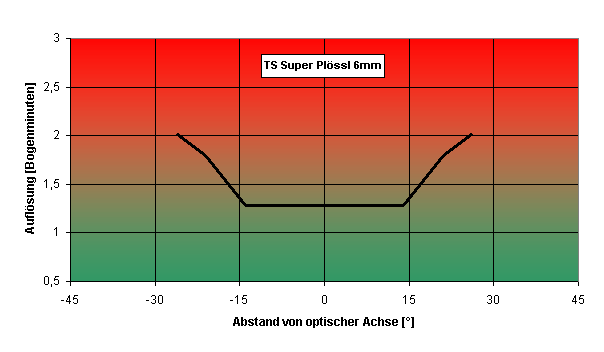

x-axis: distance from optical axis in °, y-axis: resolution in arc minutes

Apparent Field of View:

The apparent field of view is approx. 56°.

Contrast:

Very good contrast because of good multicoating and use of just four lenses.

Aberration:

Nothing measurable.

Eye Relief:

Very short eye relief because of the short focal length. Viewing the complete field of view is not possible without looking into the eyepiece under different angles.

Mechanical Quality:

Nice. You do not need more to use it for a long time.

Summary:

Recommended for planetary observations.
