Test Results

Art.–Nr. TS-SP-09

TS Super Ploessl 9mm

Sharpness:

Good within about 35° field of view. Things are getting worse to the edges.

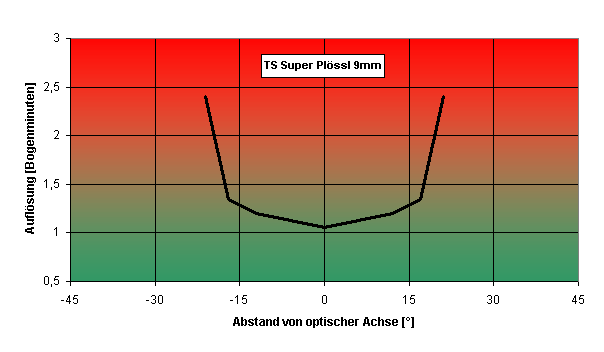

x-axis: distance from optical axis in °, y-axis: resolution in arc minutes

Apparent Field of View:

The apparent field of view is approx. 47°.

Contrast:

Very good contrast because of good multicoating and use of just four lenses.

Aberration:

Slight cushion distortion.

Eye Relief:

Despite only 9mm focal length comfortable.

Mechanical Quality:

Nice. You do not need more to use it for a long time.

Summary:

Nice, high-contrast eyepiece.
