Test Results



Art.–Nr. TS-SW-06

TS Super Wide Angle 6mm

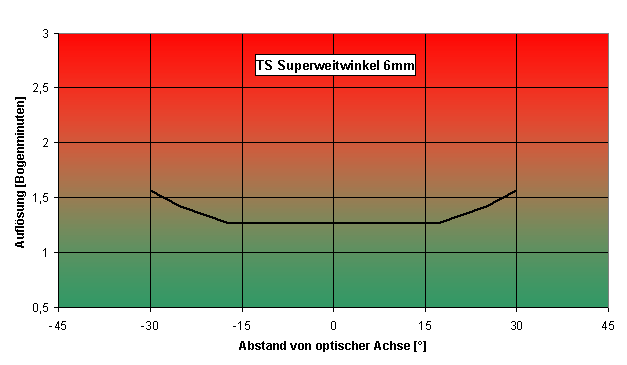

Sharpness:

Good sharpness within 60° apparent field of view, just a little bit worse close to the edge.



x-axis: distance from optical axis in °, y-axis: resolution in arc minutes



Apparent Field of View:

The apparent field of view is approx. 66°.



Contrast:

Very good contrast for an eyepiece of 6mm focal length.



Aberration:

Slight cushion distortion.



Eye Relief:

Comfortable at all. You have to keep the right distance to the eyepiece, otherwise you will see blackouts.



Mechanical Quality:

Good quality with foldable rubber eye cup.



Summary:

Large apparent field of view for little money combined with good optical performance. The eyepiece is recommended for use with F/5 or slower optics.
