Test Results



Art. –Nr. RE-SWA-20

Super Wide Angle 20mm



Sharpness:

Very good at the center, but drops towards the edges

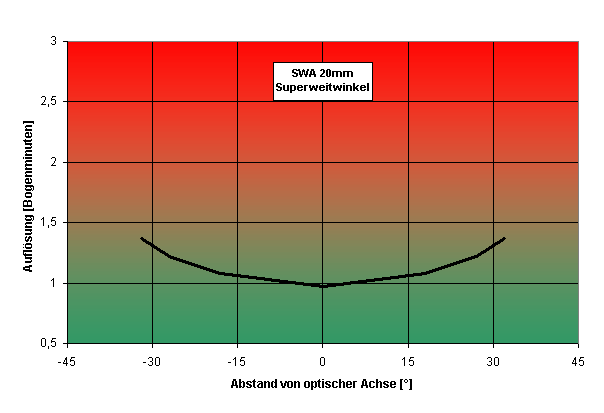

x-axis: distance from optical axis in °, y-axis: resolution in arc minutes



Apparent Field of View:

Our measurement gives 67° - close to the manufacturer data.



Contrast:

Very good.



Aberration:

Slight cushion distortion as well as field curvature.



Eye Relief:

Eye relief is close to be comfortable, but you can not wear eye glasses.



Mechanical Quality:

Good quality with rubber eye guard, grip coated body. Fully multicoated and well blackened inside.



Summary:

You can not use the full apparent field of view in good optical quality, and really not recommended for F/5 or F/4. However, as the field is much larger than for Plossl eyepieces, there is an advantage at a more or less equal price. Edge quality is enhanced remarkably when combining this eyepiece with a Barlow lens.
