Art. –Nr. RE-SWA-26
Super Wide Angle 26mm
Very good at the center, but towards the edges at little bit worse.

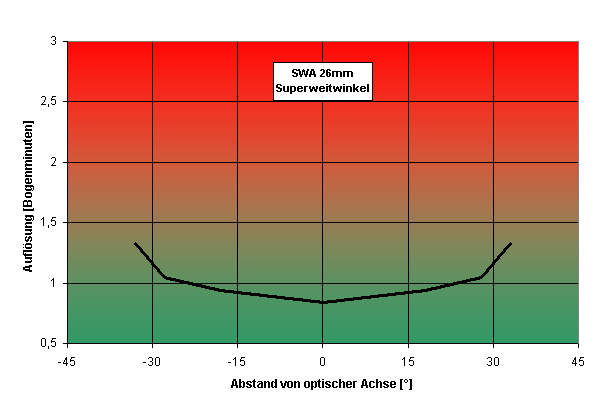

x-axis: distance from optical axis in °, y-axis: resolution in arc minutes
Apparent Field of View:
Our measurement gives 69° - close to the manufacturer data.
Nearly without distortion, but some field curvature is apparent.
Good quality with rubber eye guard, grip coated body. Fully multicoated and well blackened inside.
Recommended as a 2” panoramic view eyepiece as long as you are not expecting really pin-point stars close to the edges. However, not recommended for telescopes with focal ratio faster than F/6.
